Features:
Low Cost With High EfficiencyStainless Steel Construction Variable Speed Air Motor Portable and Lightweight - Under 50 lbsVersatile - Can be used in dip-out or crucible furnaces with capacities from 40 lbs to 3000 lbsUnique one piece lance reduces cost by eliminating shaft / impellor design Eliminates use of hazardous degassing tablets and chlorine or Freon gasses.
Included
- Degas unit, combination air regulator / filter / lubricator for air motor, four standard lances (non-impellor). See system picture to the upper left.
- Customer supplies interconnecting hoses for compressed air, filtered gas, and inert gas to suit the needs of the installation.
Options
Whenever degassing is a requirement of the melting process, it is desirable to verify the effectiveness of the degassing process. Palmer supplies a simple, easy to use partial pressure test unit for this verification.
To use, the operator warms a sample cup, dips the cup into the furnace for a metal sample, quickly places the sample into the vacuum chamber, and starts the vacuum pump.

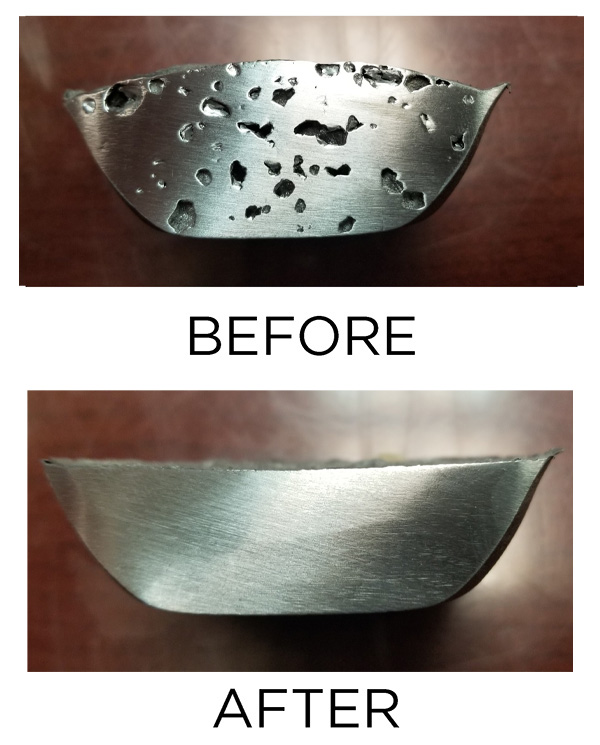

The aluminum solidifies under a vacuum causing any entrained hydrogen gas bubbles to expand greatly. Once solid and cooled, the sample is cut in half and compared to the chart below for gas level analysis.
-

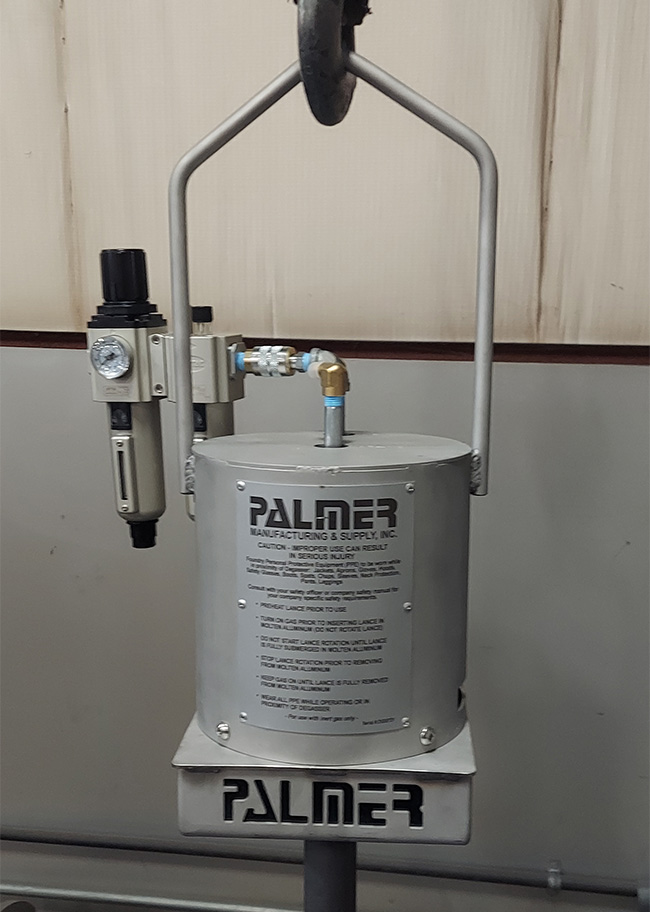

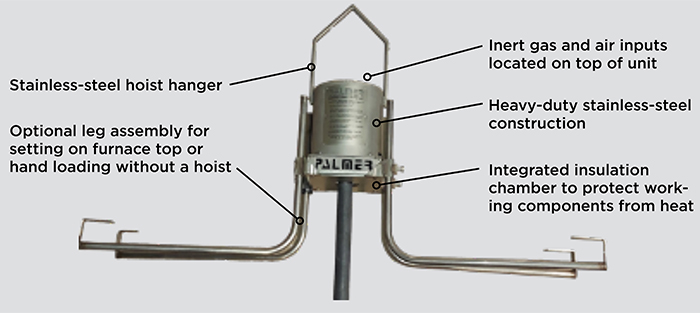

PORTABLE ROTARY DEGASSER
-
PORTABLE ROTARY DEGASSER
-
PORTABLE ROTARY DEGASSER
-

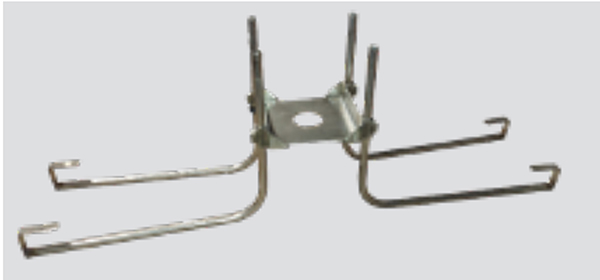

OPTIONAL LEG ASSEMBLY
General Specifications
- Motor Horsepower - 3/4 HP
- Motor RPM - 3600 RPM Variable Speed
- Lances - 24" and 36" are available. Note that 12" of lance length are contained within the unit shroud
- Body Size - 8" Diameter x 17" Long x 12" Base Flange - Suspension Hook 14" above body
- Customer Requirements - Compressed air source (90-100 PSI), Overhead Hoist, Dry Nitrogen, Argon, or proprietary dry gas
