Compaction Tables

Linear Vertical and Rotary Vibrator Compaction Tables

All Palmer compaction tables are manufactured in our well known, foundry-duty format for years of use and abuse. Heavy wall steel tubing and plate steel are used in all fabrications.

All Palmer compaction tables are built to fit your conveyor specifications. All we need to know is the roller diameter, height, and spacing between the rollers to manufacture to fit existing systems.

For no-bake cores and molds from 5 lb – 20,000 lb capacities.

  • Reduce Burn-in
  • Reduce Binder Levels
  • Rugged Heavy Duty Construction
  • Rotary and Vertical Models
  • Single, Double, or 4-Force Settings – to closely match the weight of mold or core
  • Custom Sizes to 20,000 lb

  • Compaction Tables

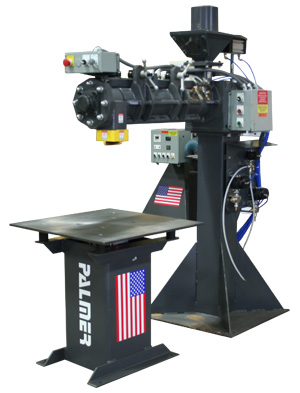

  • V200

  • Linear V-1500-I-LB

  • Linear V-3000-I-CLB

  • Rotary V-800-R4-LB

Palmer Compaction Table Standard Features

  • Flat Top
  • Rugged – heavy duty construction
  • High Frequency Vertical Vibration
  • Adjustable Duration Timer – .1 to 10 seconds
  • Adjustable Force
  • "Hands-free" Actuation
  • Precision-ground Top Plate
  • Also Used to Remove Hard-to-draw Cores
  • Well-compacted Cores and Molds Require Less Binder – which saves money and lowers gas-related defects

  • I = Vertical
  • R4 = Rotary
  • F = Flat Top – with or without airbag
  • LB = Lifting Bars
  • G = Gravity Conveyor
  • P = Powered Conveyor

Compaction Table Models

Table

Max. Capacity
(lbs)
Table Size
(inches)

Linear

Rotary

V-200-I-F

200
24"x24"

V-500-I-F

500
30"x30"

V-1500-I-LB

1500
60"x34"

V-3000-I-LB

3000
60"x34"

V-6000-I-LB

6000
72"x56"

V-4000-R4

4000
36"x60"

V-6000-R4

6000
48"x60"

V-10000-R4

10000
48"x60"

V-15000-R4

15000
60"x60"

V-20000-R4

20000
72"x72"

Compaction Table Gallery
