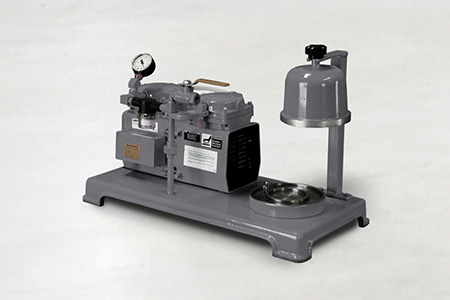

Reduced Pressure Tester

Overview

Whenever degassing is a requirement of the melting process, it is desirable to verify the effectiveness of the degassing process. Palmer supplies a simple, easy to use partial pressure test unit for this verification.

To use, the operator warms a sample cup, dips the cup into the furnace for a metal sample, quickly places the sample into the vacuum chamber, and starts the vacuum pump.

The aluminum solidifies under a vacuum causing any entrained hydrogen gas bubbles to expand greatly. Once solid and cooled, the sample is cut in half and compared to the chart below for gas level analysis.

Standard Features

• Heavy Structural Steel Construction
• 1/2 to 1.5 Million BTU Input
• FM Valve Train or Optional IRI Valve Train
• NEMA12 Prewired Control Panel
• Solid State UV Flame Detection and Flame Relay
• Automatic or Manual Electric Ignition
• Automatic Temperature Control, Optional Ramp / Soak Cycle
• Solid State Digital Temperature Controller
• Automatic Flame Shutoff When Lid is Lifted
• Optional Remote Operated Pendant Station

Configuration Options

• Single or Multi Station Units
• Stationary or Portable Units
• Lift or Tilt Covers
