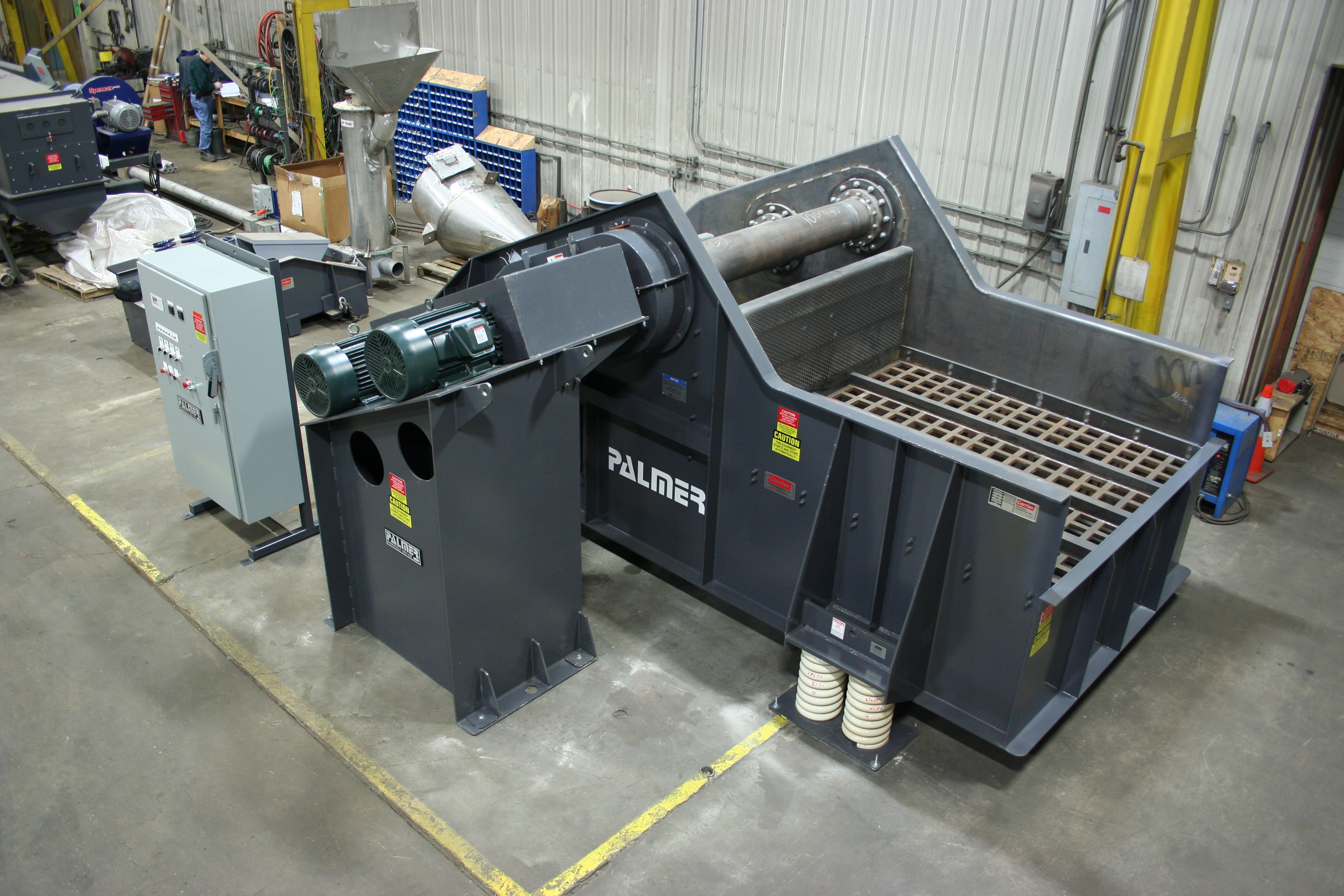

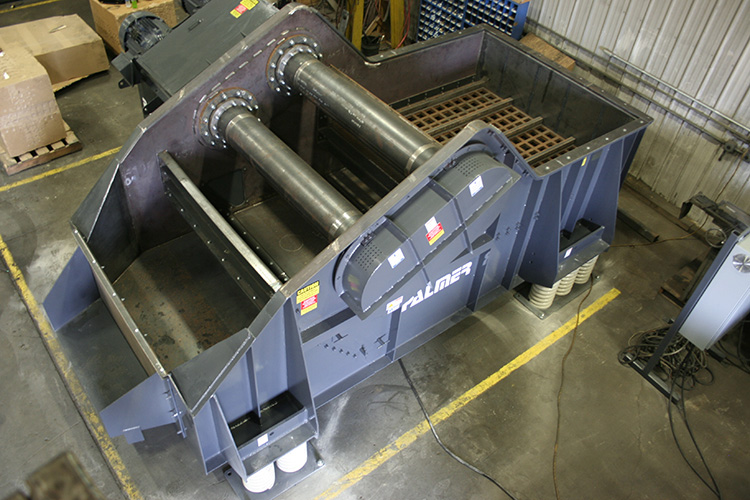

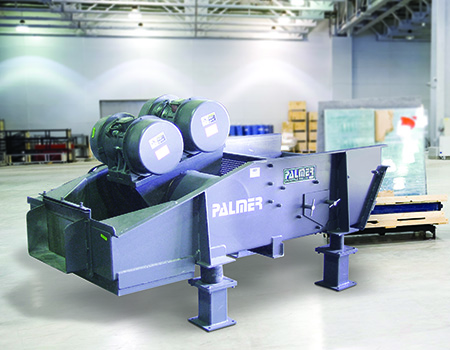

SDAM - Shakeout Deck Attrition Mill

This unit not only acts as a shakeout deck, but also includes an integral attrition mill section. The output of this unit is grain size and ready for cooling and classification.

  • SDAM - Shakeout Deck Attrition Mill

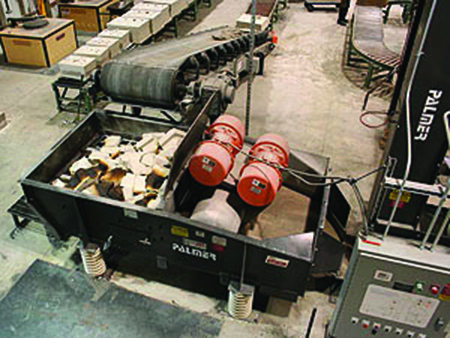

  • Example: Dualtech Installation. Molds are broken up and the part removed. Sand is recovered and recycled.

  • SDAM - Shakeout Deck Attrition Mill

  • SDAM - Shakeout Deck Attrition Mill

  • SDAM - Shakeout Deck Attrition Mill

  • SDAM - Shakeout Deck Attrition Mill

Advantages

  • No pit required (less clean-up).
  • Low level loading for better ergonomics and productivity.
  • Balanced motor system for weight distribution.
  • Reduces sand from lumps to grain size in a single unit.
  • Easy access to vibrator motors.
  • Heavy tramp metal is removed through side access door.
  • Self cleaning screens.
  • 5 sizes with deck loads to 25,000 lbs.


Features

  • Compact design allows for easy installation.
  • Easy accessibility for cleaning.
  • Linear vibratory motion minimizes spill sand.
  • Low level shakeout height enables discharge of molds from roller conveyor or vibratory trough conveyor, feed belt, etc.
  • Heavy-duty construction for long production life.
  • Modular design for easy maintenance.
