HCCL-Series Heater / Cooler / Classifier

General

The process of controlled heating, cooling, and classification of sand passing through this unit is achieved by the balanced use of air from a supplied blower and heated or cooled water in the form of a heat exchanger bundled designed integrally in the unit. This ensures that the sand being discharged from the unit is not only at the temperature best suited to the customer’s operation, but is also free of dust and matches the desired grain distribution of the sand.

• Tonnage and thermal transmission rates are based on silica sand (50-75 AFS).
• Heating Parameters: 45 degrees Fahrenheit Incoming to 85 degrees Fahrenheit Discharge (Controlled) - Heating Energy Source - Natural Gas Hot Water Boiler
• Cooling Parameters: 105 degrees Fahrenheit Incoming to 85 degrees Fahrenheit Discharge (Controlled) - Cooling Energy Source - City Water at 65 degrees Fahrenheit

Options

• Cooling Tower
• Chiller Package
• Electric Boiler
• Extended Length
• Custom sizing for specialty sands and installations

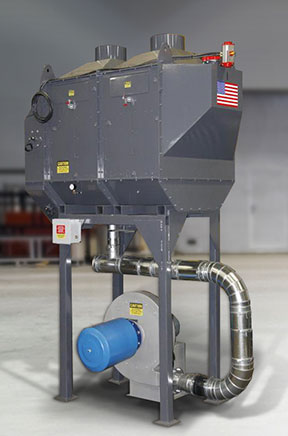

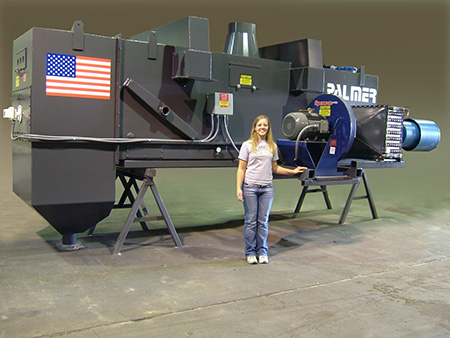

HCCL-Series Gallery
