GS Series CoreMaker Amine Gas Generators

Basic Description

The COREMAKER line of cold box core machines and supporting equipment is designed with simplicity and ease of use as a primary goal. Built by foundrymen for foundrymen, these units are expressly designed for the harsh foundry environment and with the ultimate simplicity in mind.

• Can be specified for use with all Amine gasses.


Operation

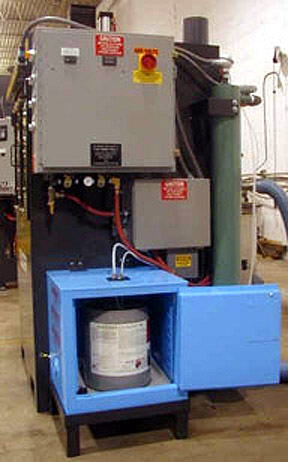

GS-10 - The GS-10 is a compact gassing system for cores up to 30 pounds. It features a sealed enclosure for the storage of amine liquid in 5 gallon pails (other sizes available). The amine supply pump extracts liquid amine from the supply and pumps it directly to the system venturi. Amine is metered into the venturi through a fast acting stainless steel ball valve. Amine gassing and purge time are easily adjusted within the system process controller. Once the amine is injected, the heated process purge air is introduced to carry the amine gas to the core machine. The purge air is heated within a high quality process heater for improved amine usage efficiency. Process heater air temperature is digitally controlled.

While simple, the operation of the GS-10 is extremely repeatable. Additionally, its simplicity makes for easier understanding and troubleshooting by operators and improved up time.

Features

• Storage enclosure for liquid amine storage device (5 Gallons Is Standard)
• Amine dosing pump
• Process air heater
• Process control timers


Options

• Gas Cabinet
• All Palmer COREMAKER Core Systems can be ordered with the Palmer Economy Scrubber.

System Requirements

• 480 Volt 3 Phase Power
• 1/2" Compressed Air Supply (Clean and Dry)
